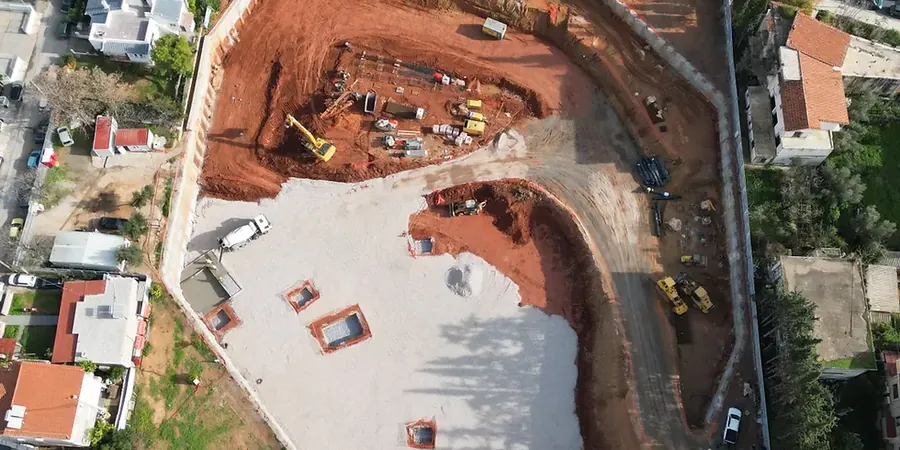

Geotechnical Design of Deep Excavations in Houston, Texas

Beneath Houston's pavement network, the geologic profile shifts from stiff Beaumont clay with plasticity indices exceeding 25 to interbedded sand lenses in the underlying Lissie strata, creating differential stiffness that can concentrate stress on soldier pile and lagging systems. A deep excavation here rarely penetrates homogeneous material; more commonly, the cut face exposes a sequence of medium-stiff to hard clay transitioning to a water-bearing sand layer below elevation -20 feet.
Our approach relies on total stress analysis (short-term, undrained) for the clay-dominated phases and effective stress parameters for the drained sand units, following FHWA-NHI-05-042 methodologies. Lateral earth pressure distribution follows the trapezoidal pattern recommended for stiff fissured clays, while sand seams are evaluated for piping potential using critical gradient criteria.
Groundwater control receives equal weight: we size deep wells or eductor systems based on hydraulic conductivity values measured through in-situ packer tests, ensuring the target drawdown reaches at least two feet below final subgrade before excavation resumes. The proximity of Buffalo Bayou and the city's extensive network of underground drainage infrastructure adds a further constraint, requiring settlement predictions that protect adjacent utilities and slab-on-grade structures.
