CPT (Cone Penetration Test) in Houston: Continuous Soil Profiling for Gulf Coast Geotechnics

Rates for CPT testing in Houston generally fall between US$150 and US$280 per sounding, depending on total depth, mobilization distance within the metro area, and whether add-on modules like seismic cone or dissipation tests are required. A standard 60-foot push at an accessible site on the west side will land at the lower end; deep soundings over 100 feet with pore pressure monitoring in the Ship Channel zone approach the upper bound.

CPT eliminates the sample disturbance that plagues SPT in Houston's Beaumont Formation clays. The cone measures sleeve friction continuously, providing a true friction ratio that classifies soil behavior type without the recovery issues of a split spoon. For design, CPT-derived parameters feed directly into pile capacity methods like LCPC and ICP, which are calibrated against cone resistance rather than blow counts, yielding more reliable unit skin friction values in the layered profile.

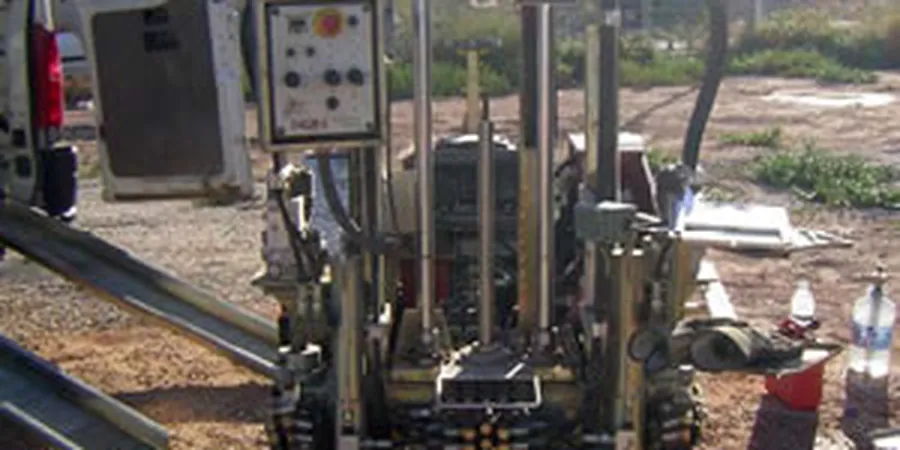

Yes. Our 20-ton penetrometer handles the overconsolidated surface crust — typically 5 to 15 feet thick with undrained shear strengths exceeding 2,000 psf — without pre-drilling in most cases. When calcareous nodules or ironstone concretions within the Beaumont Formation create refusal risk, we pre-auger through the hard layer and then seat the cone in undisturbed material below, ensuring continuous data from the zone of engineering interest.

Direct outputs include corrected cone resistance (qt), sleeve friction (fs), and pore pressure (u2). From these we derive: undrained shear strength (Su) via Nkt factor calibrated to local Beaumont clay; relative density (Dr) for sands; constrained modulus (M) for settlement calculations; and soil behavior type (SBT) via normalized charts. With SCPTu, shear wave velocity (Vs) and small-strain shear modulus (Gmax) are measured directly.

Absolutely. The City of Houston accepts CPT data per the current building code when accompanied by a geotechnical report signed by a licensed engineer. TxDOT's Geotechnical Manual explicitly recognizes CPT for bridge foundation design, embankment stability, and pavement subgrade characterization. Our reports include the required calibration certificates (ASTM D6067), zero readings, and post-test baselines that both agencies demand in the submittal package.
