Precision Grouting Design for Houston's Complex Subsurface Conditions

Evidence-based design. Reliable delivery.

LEARN MORE

Houston sits just 80 feet above sea level, on a coastal plain where the clay can swell 10% or more with seasonal moisture changes. That movement wreaks havoc on slabs and utilities if the ground isn't stabilized properly. Our crew tackles this head-on with grouting design that's calibrated to the Beaumont and Lissie formations—not a textbook recipe. The goal is to fill voids, strengthen loose zones, and cut off water migration before it causes differential settlement. When the soil profile shows interbedded sands, a CPT test helps us map the exact lenses that need treatment, and we often pair it with stone columns where deep soft layers require bulk reinforcement before injection.

Grouting in Houston isn't about filling every void—it's about targeting the active moisture path and locking the clay matrix before it cycles.

Our service areas

Methodology and scope

The upper 15 to 20 feet across Harris County are dominated by high-plasticity Beaumont clays, with pockets of loose silty sand and old alluvial channels that complicate any injection program. A standard design here has to account for a groundwater table that sits barely 8 feet down in many subdivisions. We specify grout rheology—viscosity, gel time, bleed—based on lab data from undisturbed Shelby tube samples, not just SPT blow counts. For permeation in silty sands, we limit particle size to 3 microns or less using microfine cement; for compaction grouting in soft clay, we stage the injection at 2-foot lifts and hold pressure under 50 psi to avoid hydrofracture. In tighter zones, Atterberg limits testing gives us the liquidity index, which directly dictates the maximum injection rate before the soil structure collapses.

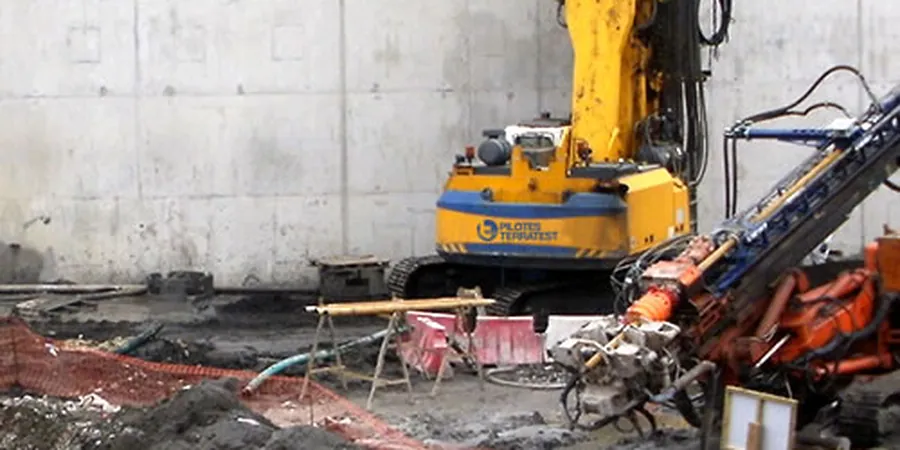

Precision Grouting Design for Houston's Complex Subsurface Conditions
Technical reference — Houston

Local considerations

Houston's post-war boom pushed subdivisions into former marshland and rice fields, leaving a legacy of undocumented fill and organic lenses under thousands of homes. The biggest risk isn't just settlement—it's differential movement from perched water trapped against grouted zones. If the injection plan doesn't include drainage paths, you can make things worse by damming the natural flow. We've seen slabs lift unevenly because a well-meaning compaction program ignored a thin sand seam at 12 feet. That's why our designs always include a hydrogeologic cross-section and a staged verification protocol: inject, let pore pressure dissipate, test with CPT, and only then move to the next cell.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering1.org

Explanatory video

Applicable standards

ASTM D4320 (chemical grouts), ASTM D5092 (monitoring wells), ASCE Grouting Committee guidelines

Technical parameters

ParameterTypical value
Typical treatment depth8-40 ft
Grout type for clayCompaction, microfine cement
Grout type for sandPermeation, sodium silicate
Max injection pressure (clay)<50 psi
Gel time range15-120 sec
Verification methodCPT, cross-hole sonic
Particle size (microfine)D95 < 3 µm

Frequently asked questions

How much does a grouting design typically cost for a Houston project?

For a standard residential or light commercial lot in the Houston area, the design package usually falls between US$1,310 and US$4,630, depending on the number of borings, lab testing required, and the complexity of the subsurface profile.

Which grouting method works best in Houston's expansive clays?

Compaction grouting is the most common for treating expansive Beaumont clay because it densifies the soil mass from the bottom up, reducing void ratio. Permeation grouting is only effective in the sand seams, not the clay matrix itself.

Do you verify the grouting after injection?

Yes, we require post-treatment CPT soundings or cross-hole sonic logging as part of the design. The specification includes target cone tip resistance values and a minimum 48-hour waiting period for pore pressure dissipation before testing.

Can grouting stabilize a slab that's already moving?

It can, but it's a surgical procedure. We map the active moisture source first and design a targeted injection plan to fill voids and stiffen the supporting soil. Without addressing the water, the movement will return.
